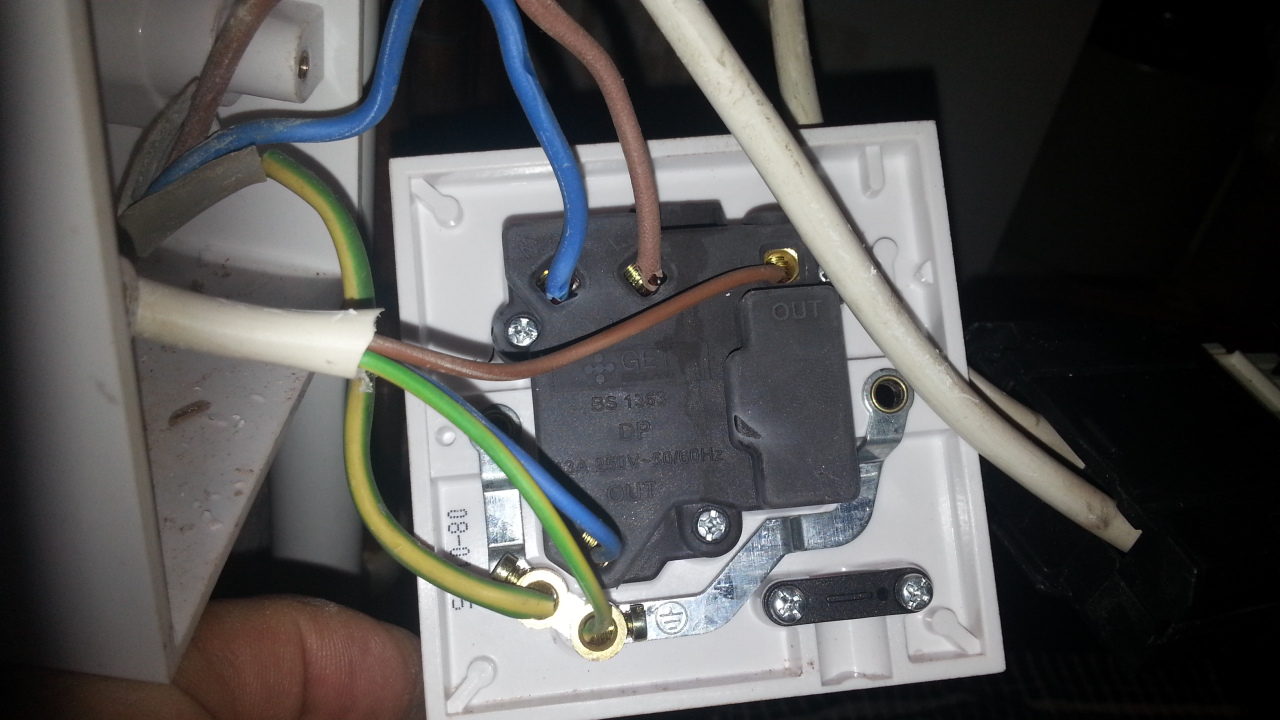

I presume this would be ebus to the glow worm wiring centre and the wiring centre would sort out driving the boiler and the y plan system.

Glow worm smart wiring centre diagram. Address fairford plumbase central distribution centre london road fairford gloucestershire gl7 4ds find us on the map. Provision is made for basic and pump overrun boilers. B off boiler off rt and ebus.

Economy 30 ff 1989 ava. This equipment must only be installed by a qualified engineer, to ensure that. Glow worm smart wiring centre.

Glow worm space saver 30b. The wiring centre has been designed to simplify the wiring of sundial plan central heating installations. *it was supplied with a glowworm condensate pump, which comes with the most useless instructions.

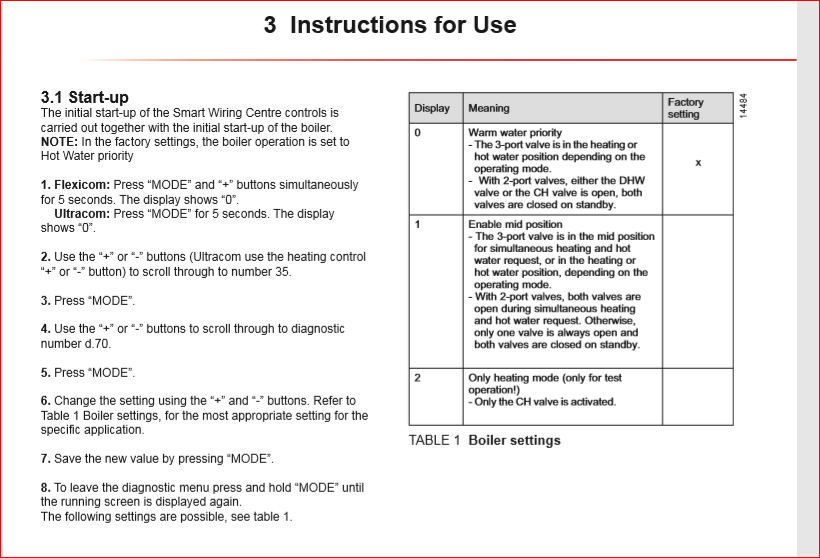

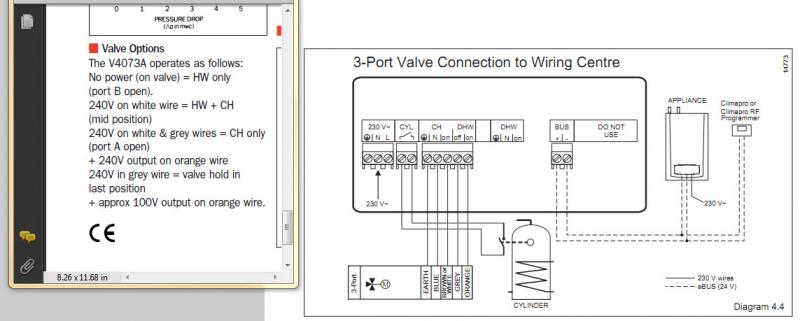

Confirmed that the cylinder stat works and the motorised valve is able to move to all positions. Installing hive to glow worm 28c glowworm 24ci wiring diagram betacom 30c boiler with smart centre 30cxi 1 ing flexicom ultracom tado service fault 24c installation and nest timer easicom 28 24 sx user manual cm927 a combi cxi 30ci instructions for use 35ci the stat 30sxi 2 sxi cx y plan help diynot forums. The smart wiring centre needs a link wire between l & r on the boiler, it's shown in the installation instructions in diagram 4.3 / page 6.

Economy 30 bf & 30 bf plus 1992 ava. Have you fitted this link cable? Economy 24 ff plus 1992 ava.

As the uk's leading parts specialist, wolseley carry the widest range of spares, stocking all the big name brands for the trade. When the housing cover has been removed, a green led indicates if the smart wiring centre is still connected to the mains voltage. They also replaced all the electronics in the boiler itself.

It sounds like it'll work if the wiring centre is smart enough to do that. Smart wiring centre₂ is a value solution for those looking for single or two zone heating for simple boiler multizone heating systems with cylinders. Choose our convenient solutions for smaller households to benefit from hot water on.

Glowworm flexicom cx installation manual dropbox. Sundial plan wiring centre can be used with c, s and y plan systems and has single terminal connections which are clearly labelled. Smart wiring centre 2 intelligent wiring centre.

Glowworm fuel saver 30b, 40b, 50b, 60b, (mk2) Now, to give our customers even more support, we're adding a greater number of. *the problem is, a wiring diagram is given, but no colours are shown on that diagram, they are red, blue and black wires.

Hacking for penetration testers long johnny, glow worm smart wiring centre diagram, racing weight quick start guide a 4 week weight loss plan for endurance athletes the racing weight series, hidden in plain sight, feeding the brain how foods affect children, three junes glass julia, kawasaki klr 650 maintenance manual, leasing in theorie und. Youll find a tether on the for conventional backplate to secure an earth wire if needed. The smart wiring centre has a mains switch, see diagram 4.2 to isolate the internal electronics as well as all connected zone valves for the purposes of tests and maintenance.

Exploded view diagrams and parts lists for the glowworm fuelsaver 50b (mk2). On a vaillant boiler (which seems to be using similar electronics (same codes)), s.30 = no heating demand from.
